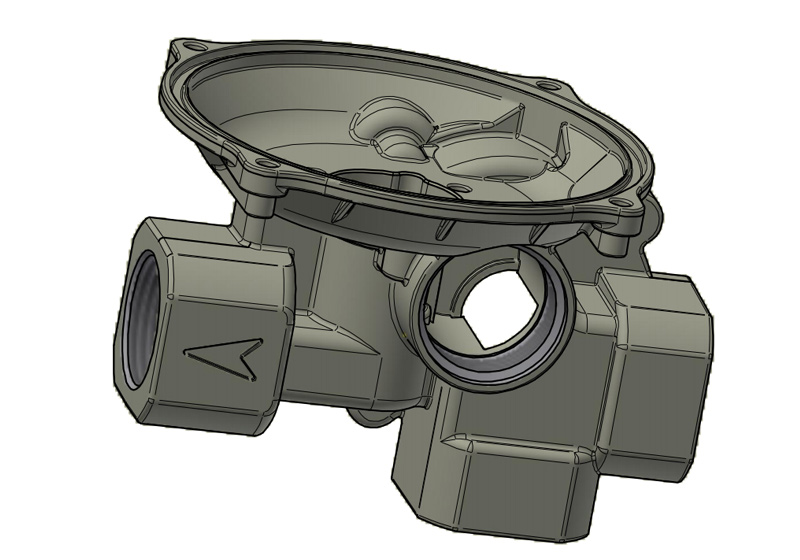

Gas Meter Part Housing

A03800 (equivalent to A380) is a general-purpose die casting alloy combining good fluidity, mechanical strength, and corrosion resistance. Compared to ADC12, A380 has higher copper content which improves machinability and dimensional stability under load—relevant for a gas meter housing where the CNC-machined port interfaces and valve seat must maintain their geometry under sustained gas pressure and mechanical assembly forces. It is a common choice when slightly higher strength at the machined interfaces is prioritized alongside castability.

Shot blasting produces a uniform matte surface that removes casting skin, oxide layers, and micro-burrs without adding any coating thickness—making it the appropriate finish when the housing will subsequently receive a secondary treatment by the customer, or when precise dimensional control at mating surfaces is required and coating buildup at critical interfaces would be problematic. For a gas meter housing where port bore dimensions and flange face geometry must remain exactly as machined, shot blasting cleans without altering the dimensional outcome of the CNC operations.

These tolerances govern the valve seat and port connection faces where the internal gas valve mechanism seals against the housing body. The 0.05mm minimum tolerance controls bore diameter and position accuracy to ensure the valve element seats concentrically, while 0.1mm flatness on the sealing face ensures the gasket or O-ring compresses uniformly around the full perimeter. Any deviation beyond these limits creates a leak path that allows gas to bypass the valve—which in a metering application both compromises measurement accuracy and creates a safety hazard.

The housing must provide a precisely dimensioned internal chamber that locates and constrains the valve mechanism without play or misalignment—any looseness causes valve chatter, inaccurate shutoff, or metering error. The chamber walls must also be stiff enough to resist deformation under the clamping forces applied during assembly and the cyclic pressure loads from gas flow, without distorting the bore geometry. This structural rigidity requirement, combined with the 2.5mm minimum wall thickness and complex internal geometry, explains why HPDC followed by precision CNC is the chosen process route rather than simpler casting methods.

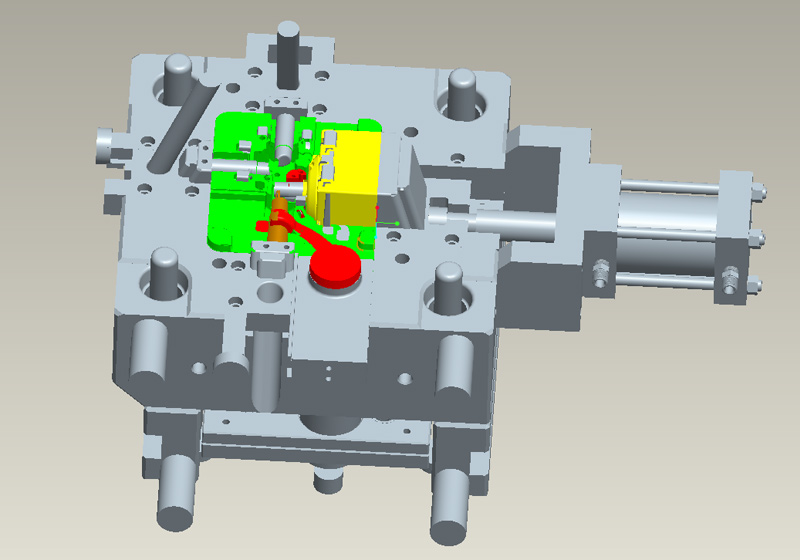

At 126×112×87mm and 520g, this housing is similar in footprint to the valve housing (110×115×90mm, 400g) but 30% heavier, indicating more material volume and likely thicker walls in specific zones. The additional mass increases the thermal gradient during solidification and the total shrinkage volume the intensification pressure must compensate—requiring more careful gate and intensification parameter tuning. The similar overall dimensions mean both parts share the same fundamental mold complexity challenges (4-slider design, deep internal features), but the higher mass on this part shifts the process window toward longer intensification hold times to ensure complete cavity fill and dense internal structure.
