Custom Aluminium Gas Meter Castings from China — Precision Die Casting with Leak Testing

Apr 16, 2026

Sourcing custom aluminium gas meter castings from China has become a strategic choice for meter manufacturers worldwide — not just for cost, but for access to mature die casting infrastructure and tightening quality standards. Global gas meter production is projected to exceed 200 million units annually by 2027, driven by smart metering rollouts across Europe, Asia, and the Americas. Behind every meter body is a casting that must perform without failure for 15–20 years in service.

This guide addresses what procurement engineers, OEM product managers, and utility equipment buyers need to know when specifying or sourcing gas meter castings at production scale. Key topics covered:

Why high-pressure die casting (HPDC) is the dominant process for gas meter bodies — and where its limits are
How porosity is controlled during production, and what X-ray and vacuum-assist techniques actually change
What helium leak testing requires, and why it's the preferred verification method over pressure decay
Sealing surface tolerances, O-ring groove specs, and dimensional requirements that affect downstream assembly
Alloy selection, surface treatment options, and how custom port configurations are handled without cost penalties

Choosing the right casting supplier for a gas meter program is a long-term decision — one that affects safety compliance, field reliability, and total program cost. Read on to understand what capable, certified production actually looks like.

Table of Contents

Why Gas Meter Castings Demand More Than Standard Die Casting
What Makes Pressure Die Casting the Right Process for Gas Meter Bodies?
How We Control Porosity and Wall Integrity During Production
Helium Leak Testing — The Industry Standard for Gas Meter Castings
Dimensional Tolerances and Sealing Surface Requirements
Custom Options: Alloys, Coatings, and Port Configurations
Certifications and Quality Standards We Work To
Conclusion

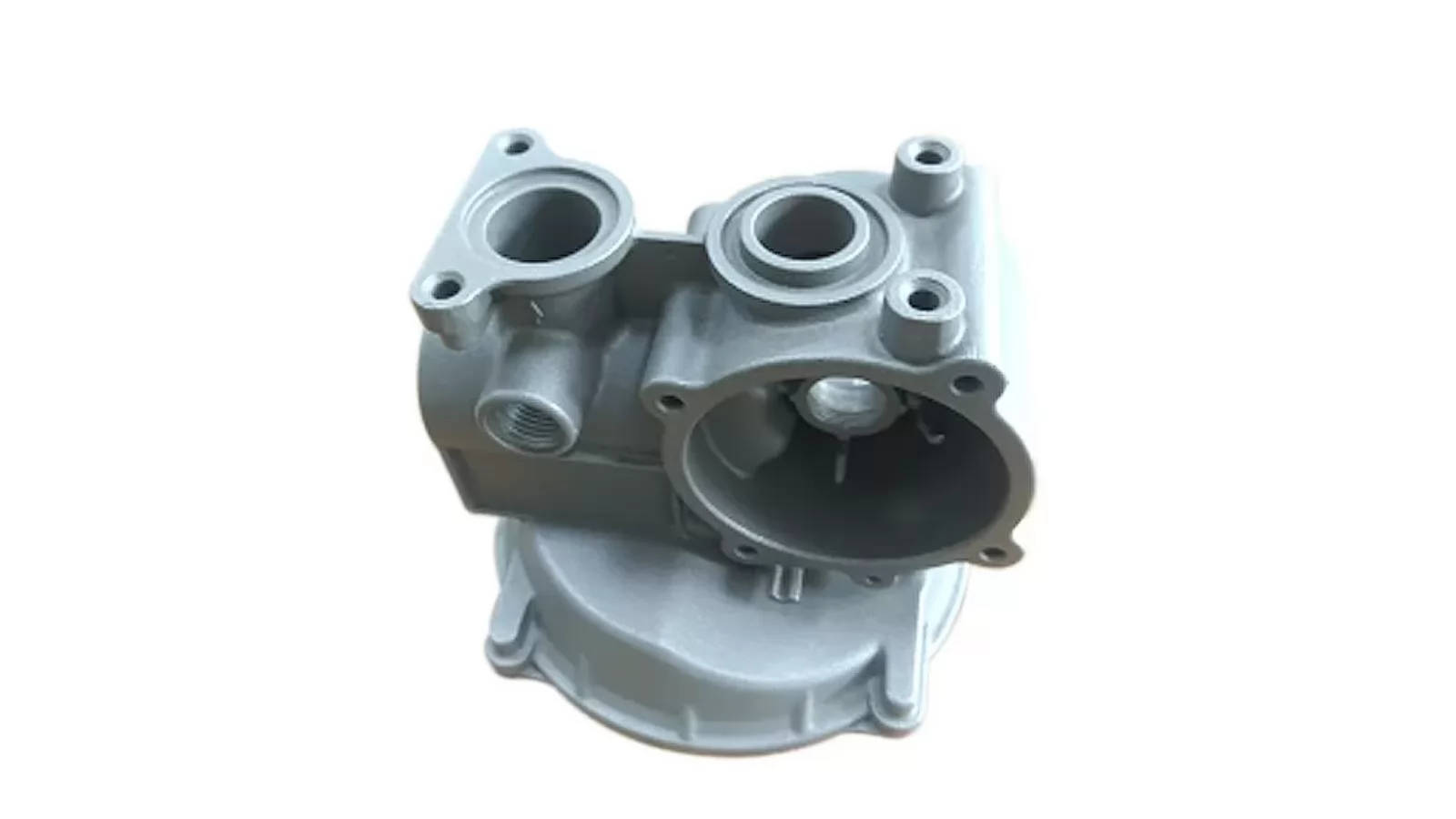

Why Gas Meter Castings Demand More Than Standard Die Casting

A standard aluminium casting fails here. Gas meter housings don't carry water or oil — they carry gas. That changes everything.

Consider this: A residential gas meter casting with a 0.3 mm micro-crack passes visual inspection, ships to a European utility client, and sits in service for 18 months — until a trace leak triggers a street-level safety response. The casting looked fine. It wasn't.

This is why gas meter castings are held to a different standard. Three requirements separate them from general-purpose die castings:

Requirement	Standard Casting	Gas Meter Casting
Internal porosity	Cosmetic concern	Leak path risk — rejected
Sealing surface flatness	±0.2 mm typical	≤0.05 mm required
Wall thickness consistency	±0.3 mm acceptable	Tight control to prevent thin spots
Leak verification	Not required	100% helium or pressure test

These aren't conservative specs. They reflect what gas distribution systems actually demand in the field.

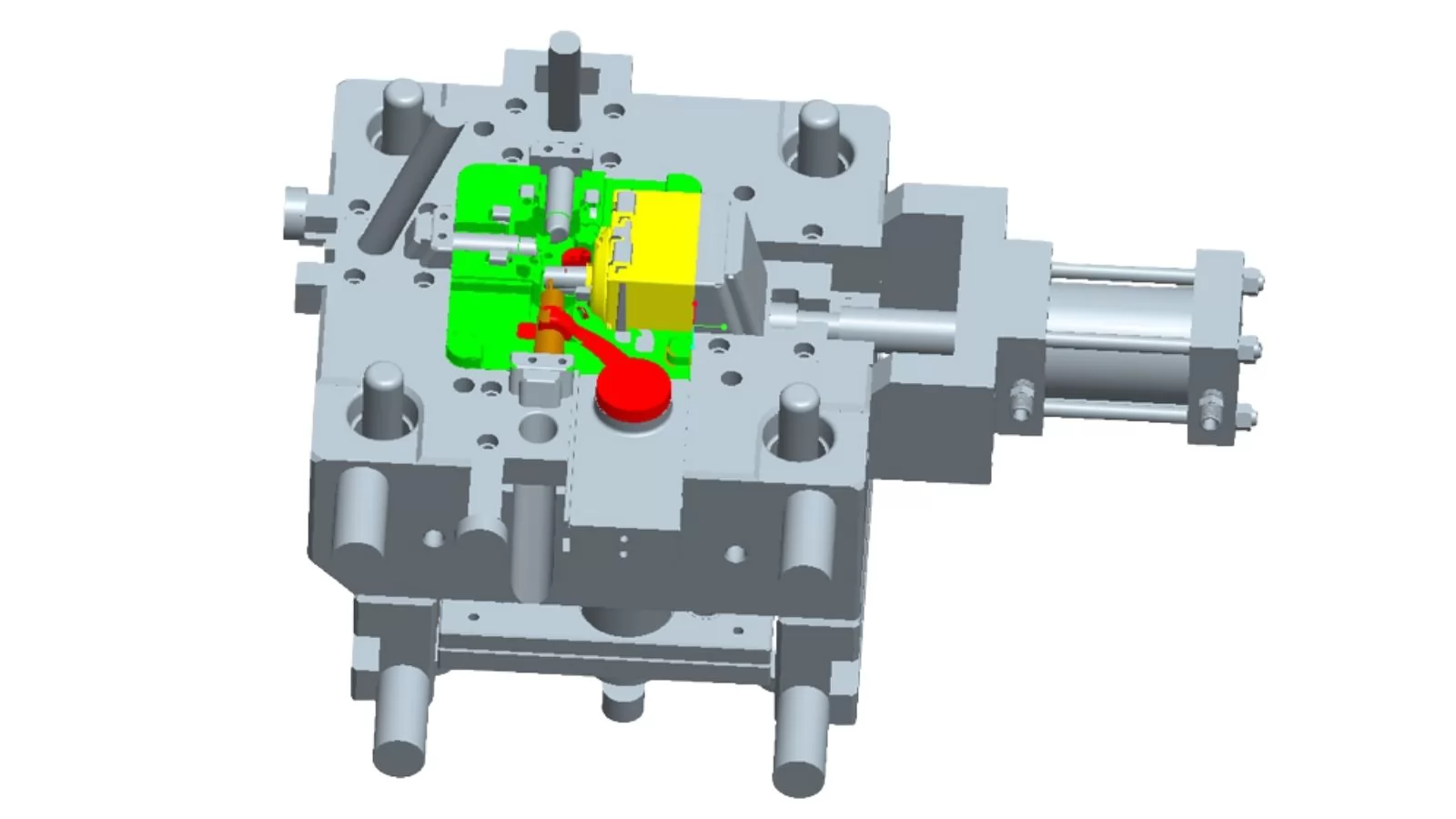

What Makes Pressure Die Casting the Right Process for Gas Meter Bodies?

Not every casting process can meet these demands consistently. Here's why high-pressure die casting (HPDC) leads for gas meter applications.

When molten aluminium is injected at 600–1000 bar, it fills the die cavity in milliseconds. The result: a dense, fine-grain microstructure with fewer voids than gravity or low-pressure alternatives.

In practice: A gas meter body produced via gravity casting may show 2–4% porosity by volume. The same geometry in HPDC typically comes in below 0.5% — a meaningful difference when the part needs to hold gas pressure for 15+ years.

The process advantages go further than density alone.

Process	Density	Cycle Time	Dimensional Consistency
Gravity Die Casting	Moderate	Slow	CT6–CT7
Low-Pressure Die Casting	Good	Moderate	CT5–CT6
High-Pressure Die Casting	Excellent	Fast	CT4–CT5

For gas meter volumes — typically 5,000 to 100,000 units per year — HPDC also delivers the cost-per-part economics that gravity casting simply can't match at scale.

How We Control Porosity and Wall Integrity During Production

Porosity doesn't appear randomly. It's the result of specific, controllable variables — and we manage each one.

The four factors that matter most in HPDC porosity control:

Variable	What We Control	Why It Matters
Die temperature	180–220°C maintained	Prevents premature solidification and cold shuts
Injection speed	Staged — slow fill, fast pack	Reduces turbulence-induced gas entrapment
Holding pressure	600–900 bar during solidification	Compresses residual micro-voids before part ejects
Vacuum assist	Applied on critical cavities	Evacuates air before metal entry

Process control is one layer. Verification is another.

For gas meter bodies, we apply X-ray inspection on first-article and periodic production samples. This gives a cross-section view of internal density — catching shrinkage pockets that no surface inspection can detect.

A typical finding: Early in one customer's program, X-ray revealed a recurring void cluster near a thick-to-thin transition in the housing wall. We adjusted the gate location and reduced that section's fill speed. The issue disappeared within the next trial shot — before a single production unit was made.

Wall integrity is maintained by design as much as process. We review wall thickness uniformity during DFM — flagging transitions over 3:1 ratio before tooling is cut. This is part of our standard APQP process for new programs.

Helium Leak Testing — The Industry Standard for Gas Meter Castings

Pressure drop tests catch big leaks. Helium leak testing catches everything else.

Helium molecules are small — small enough to pass through defects invisible to any other method. That's why it's the preferred verification tool for gas-carrying components worldwide.

How it works: The casting is placed in a sealed test chamber filled with helium at a set pressure. A mass spectrometer monitors the exterior. Any helium escaping through the part is detected and quantified — down to 1×10⁻⁶ mbar·L/s. At that sensitivity, a leak the size of a bacterium doesn't pass.

How does helium testing compare to alternatives?

Test Method	Detection Limit	Suitable For	Used For Gas Meters?
Bubble immersion	~10⁻³ mbar·L/s	Gross leaks only	No
Pressure decay	~10⁻⁴ mbar·L/s	Medium sensitivity	Sometimes
Helium mass spectrometry	~10⁻⁶ mbar·L/s	High-integrity gas parts	Yes — preferred

We apply helium leak testing at 100% coverage for gas meter castings — not as a sampling protocol. Every part is tested before it ships.

Dimensional Tolerances and Sealing Surface Requirements

A casting that passes leak testing still needs to assemble correctly. Tolerances on gas meter housings are tighter than most customers initially expect.

Here's what typical gas meter casting specifications look like across key dimensions:

Feature	Typical Tolerance	Notes
Overall housing dimensions	CT5 (ISO 8062)	Standard for HPDC aluminium
Bore and port diameters	±0.10 mm	Post-machining where required
Sealing flange flatness	≤0.05 mm	Critical for gasket compression
O-ring groove dimensions	±0.05 mm	Depth and width both controlled
Mating face perpendicularity	≤0.08 mm	Prevents uneven seal loading

Sealing surfaces deserve particular attention. A flange that is flat to 0.1 mm may still leak if the O-ring groove width is off — the gasket won't compress evenly across the joint.

One example: A European gas meter OEM came to us after experiencing field leaks traced back to their previous supplier's O-ring grooves — dimensionally within print, but with surface roughness Ra values over 3.2 μm. We hold groove surfaces to Ra ≤1.6 μm as a default. The leaks stopped.

For new programs, we provide a full dimensional report (FAI) against customer drawings on first-article parts — covering all critical features before series production begins. This is delivered as part of our standard PPAP package.

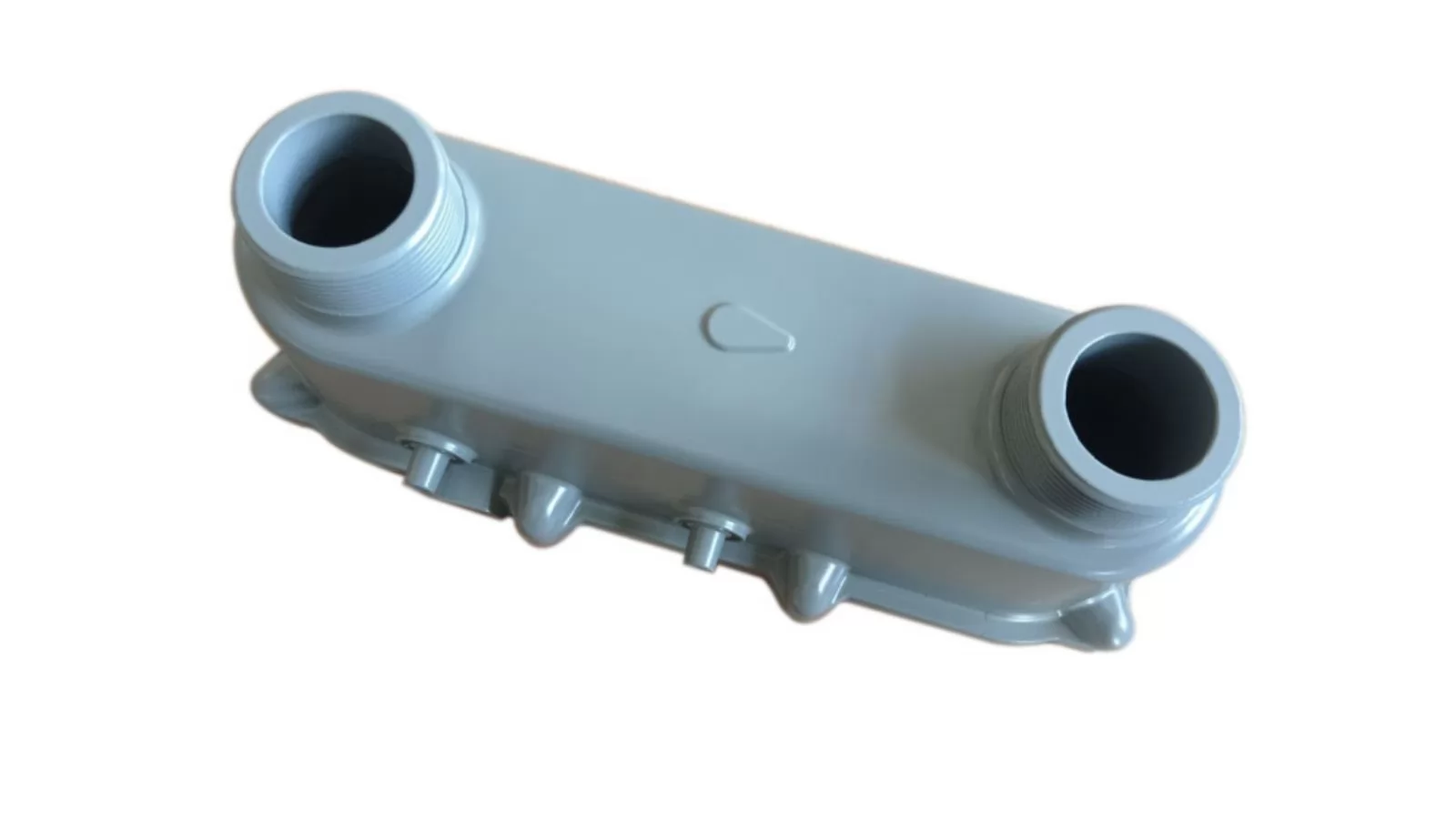

Custom Options: Alloys, Coatings, and Port Configurations

Gas meter housings aren't one-size-fits-all. Alloy choice, surface treatment, and port layout all vary by application — and we configure each to your specification.

Alloy Selection

Three alloys cover the majority of gas meter casting programs:

Alloy	Standard	Key Characteristic	Typical Use Case
ADC12	JIS H5302	Excellent fluidity, low porosity	High-volume residential meter bodies
A380	ASTM B85	Good strength, corrosion resistance	North American OEM programs
EN AC-46000	EN 1706	European standard, tight mechanical properties	EU utility and industrial meters

If your drawing specifies a different alloy, we review it during DFM and confirm compatibility with the casting geometry before tooling begins.

Surface Treatments

Gas meter housings are exposed to outdoor environments for 10–20 years. Surface protection matters.

Available options include shot blasting (standard), chromate conversion coating (corrosion baseline), powder coating (colour-coded by utility specification), and anodising for enhanced wear and chemical resistance. All treatments are RoHS and REACH compliant.

Port and Thread Configurations

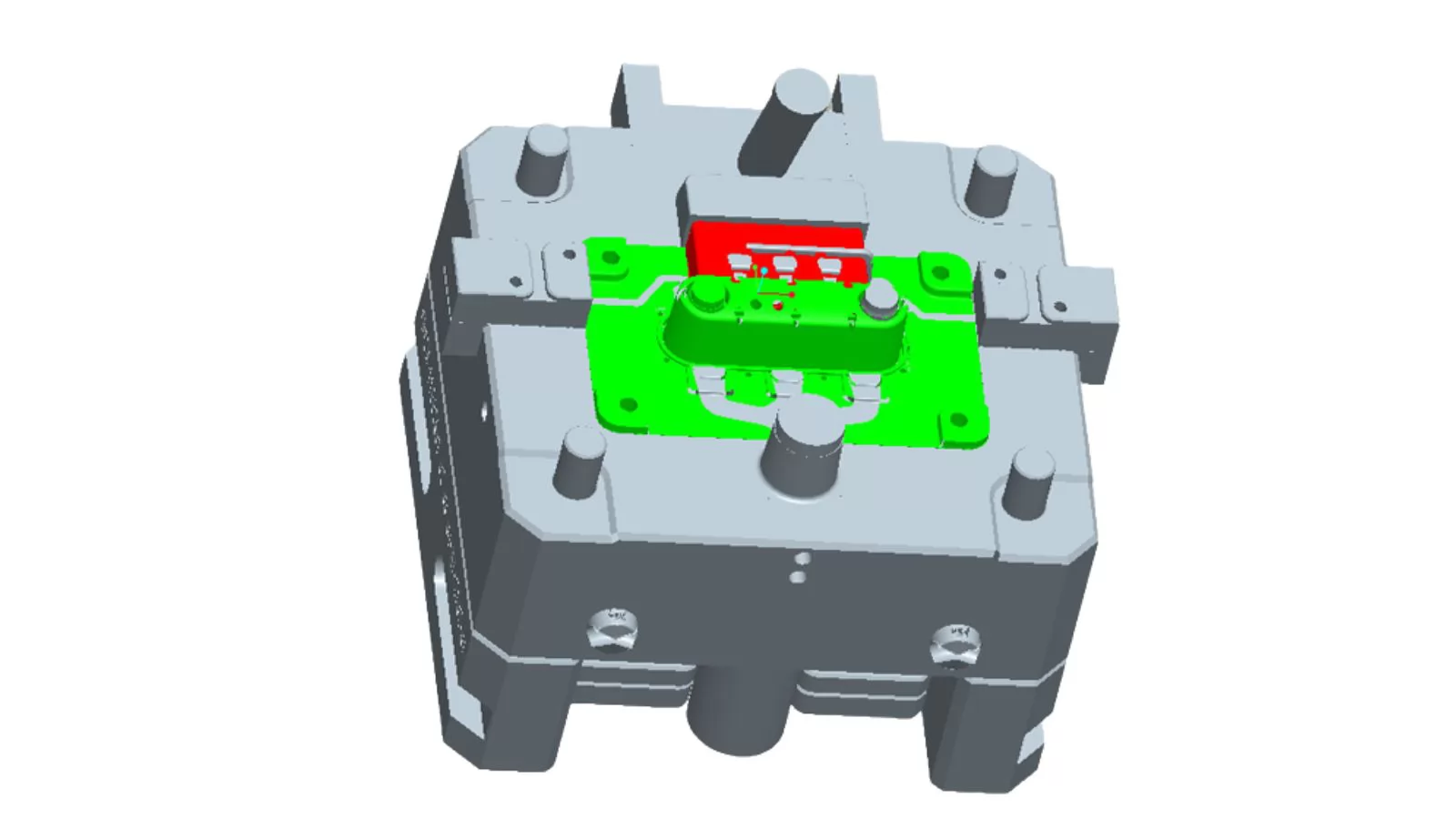

Inlet/outlet port geometry, thread standards (NPT, BSP, metric), boss positioning, and bracket mounting features are all defined at the tooling stage. We accommodate custom port layouts without tooling surcharges on qualified volumes.

Common request: A gas utility client needed dual-port housings with asymmetric inlet/outlet spacing to fit an existing manifold layout. We adjusted the die insert geometry during tool design — no post-machining required, no extra cost per part.

Certifications and Quality Standards We Work To

Gas meter castings enter regulated infrastructure. The certifications behind a supplier aren't paperwork — they're the basis for approving a casting into a utility's supply chain.

Here's what we hold and what each means in practice:

Certification / Standard	Scope	Relevance to Gas Meter Castings
IATF 16949	Quality management system	Rigorous process control and PPAP documentation — often required by tier-1 OEMs
ISO 9001	Quality management baseline	Covers non-automotive programs and general procurement requirements
ISO 14001	Environmental management	Required by many European utility procurement policies
APQP / PPAP	Product development and approval	Structured first-article approval with full dimensional and material records
VDA 6.3 / 6.5	Process and product audit	Supports German and EU customer qualification audits
RoHS / REACH	Material compliance	Required for castings entering the European market

For gas meter programs specifically, we provide full material certifications, helium leak test records, and dimensional FAI reports as standard deliverables — not optional add-ons.

Conclusion

Gas meter castings sit at the intersection of two unforgiving requirements: they must be dimensionally precise enough to assemble reliably, and gas-tight enough to stay safe in the field for decades.

Meeting both — consistently, at production volumes — is what separates a capable casting supplier from a general-purpose one.

At Innovaw, we've been producing aluminium castings for industrial and infrastructure applications since 1998. Our gas meter casting programs combine HPDC process control, 100% helium leak testing, IATF 16949-backed quality systems, and full PPAP documentation — delivered from our facility in Ningbo, China to customers across Europe, North America, and beyond.

What our customers typically send us to get started: a 2D drawing or 3D model, annual volume requirement, target alloy or material spec, and any leak test standard they need to meet. We respond within 1–3 business days with a DFM review and cost breakdown.

If you're qualifying a new casting supplier or scaling an existing gas meter program, we're ready to review your drawings.
